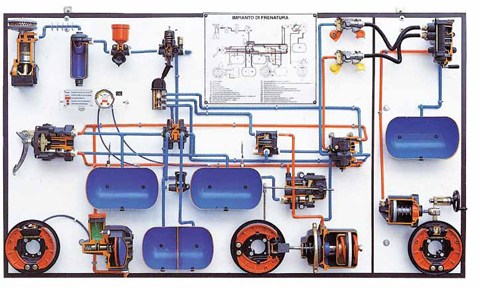

Wall panel including all the elements of a compressed air braking system. It is complete with all connection circuit components. The hydro-pneumatic braking system and the braking system with the olive pivot are displayed.

The components show are:

• Compressor	• Spring brake and trailer tank	• Double-spring braking element
• Heating coil	• Pressure reducer	• ISO coupling joints
• Air purifier	• Duplex distributor	• Servo-auto distributor
• Anti-freeze system	• Double-governor servo-distributor	• Auxiliary trailer tank
• Pressure regulator	• Triple governor servo-distributor	• Olive pivot braking element
• Pressure gauge	• Jackknife	• Parking brake trailer device
• Safety valve tank	• Charge-pressure modulator	• Service tank
• Front brakes air tank	• Pneumo-hydraulic pump
• Rear brakes air tank	• Low pressure indicator

This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts and cross-sections. Many parts have been chromium-plated and galvanised for a longer life.

Other Available Cutaway Models:

• Heavy Vehicle Compressed Air Braking System (Double Spring Braking Unit and Chuck Device) Cutaway on Stand with Wheels – (VB 12180S)

VB 12170S

• Operated: Static
• Equipment Layout: On Wall Panel
• Dimensions: 220 x 36 x 140(h) cm
• Net Weight: 95 kg
• Gross Weight: 135 kg

VB 12180S

• Operated: Static
• Equipment Layout: On Stand with Wheels
• Dimensions: 220 x 36 x 140(h) cm
• Net Weight: 110 kg
• Gross Weight: 150 kg
