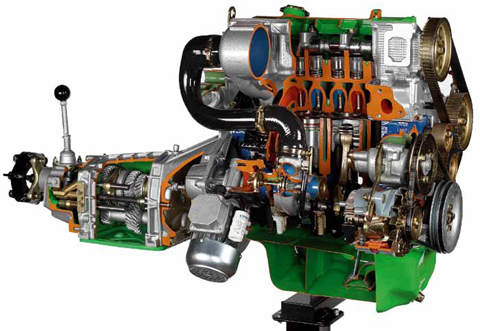

RWD Turbo Diesel Engine with Gearbox Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.

Other Available Cutaway Models:
Specifications:

Main Technical Specifications:
  • 4 stroke engine
  • 4 in-line cylinders
  • Displacement: 1300/1700 cc
  • Indirect injection
  • Feeding by turbosupercharger;
  • VE Bosch type rotary injection pump
  • Overhead camshaft (OHC)
  • Distribution through a toothed belt;
  • Alternator
  • Thermostatic valve
  • Gearbox: 4 forward speeds + reverse
  • Single-plate clutch with diaphragm
  • Water cooling

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 60 x 160 x 100(h) cm
  • Net Weight: 150 kg
  • Gross Weight: 210 kg
Product: RWD Turbo Diesel Engine with Gearbox Cutaway
Product Code: VB 6070E
