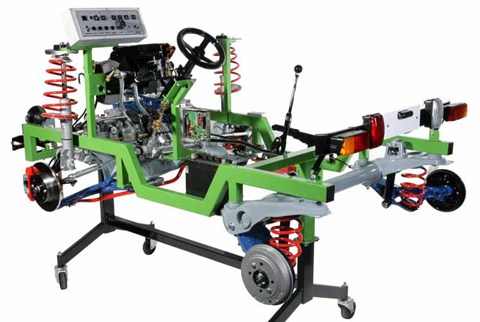

FWD Chassis with Turbo Diesel Engine Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.

Other Available Cutaway Models:
Specifications:

Main Technical Specifications:
  • Fiat chassis with front drive (engine transversally mounted)
  • Diesel engine displacement: 1700 cc
  • 4 cylinders
  • Indirect injection with pre-chamber
  • Bosch VE rotary injection pump
  • Turbo-compressor with waste-gate valve
  • Gearbox: 5 forward speed+reverse+differential
  • Hydraulic power steering with double-jointed steering column
  • Radiator with electric fan
  • Front disc brake
  • Rear drum brake
  • Independent wheels McPherson front suspension with oscillating arms
  • Rear independent suspension with coil spring and gas shock absorbers

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 220 x 160 x 115(h) cm
  • Net Weight: 290 kg
  • Gross Weight: 400 kg

Options:
  • ABS
Product: FWD Chassis with Turbo Diesel Engine Cutaway
Product Code: VB 6176E
