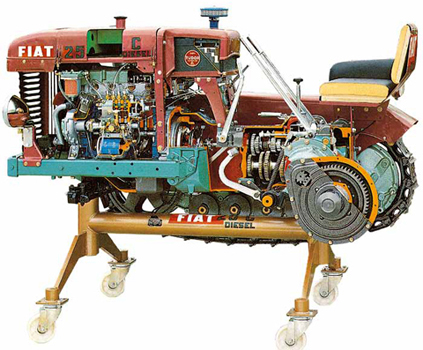

FIAT 25C Tracked Diesel Tractor Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.
Main Technical Specifications:
- 4 stroke 4 cylinder engine
- Displacement: 2000 cc
- Indirect injection
- Water cooling
- Overhead valves
- In-line injection pump
- Multiple-plate steering clutch
- Gearbox: 4 forward speeds + reverse
Other Specifications:
- Operated: Electrically (Motor 230 V)
- Equipment Layout: On Stand with Wheels
- Dimensions: 230 x 132 x 180(h) cm
- Net Weight: 910 kg
- Gross Weight: 1200 kg
Product: FIAT 25C Tracked Diesel Tractor Cutaway
Product Code: VB 8350E
