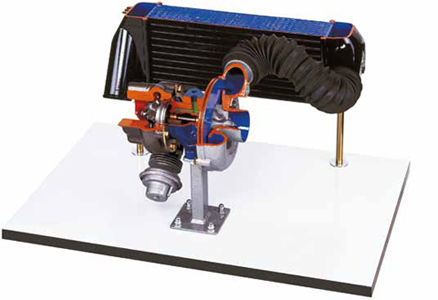

Variable Geometry Turbocharger with Intercooler Cutaway
Accurate cross-section of the Variable Geometry Turbocharger with Intercooler highlighting the:
  • Exhaust gas turbine with variable geometry
  • Centrifugal compressor
  • Lubricating circuit
  • Cutaway air-air heat exchanger connected to the turbocharger
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts and cross-sections. Many parts have been chromium-plated and galvanized for a longer life.

Other Available Models:

Turbocharger with Intercooler Cutaway – (VB 10450)
Specifications:
  • Operated: Manually
  • Equipment Layout: On Base
  • Dimensions: 60 x 40 x 40(h) cm
  • Net Weight: 12 kg
  • Gross Weight: 18 kg
Product: Variable Geometry Turbocharger with Intercooler Cutaway
Product Code: VB 10451
