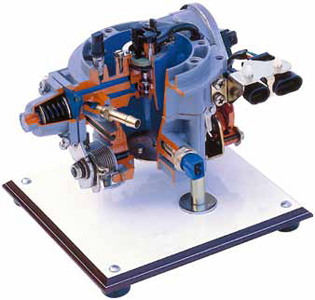

Mono-jetronic Throttle Body Cutaway
Accurate section of a throttle body fitted to Mono-jetronic engines.

The following parts are shown:
  • Pressure control
  • Bottom feed type injector
  • Air and water temperature sensor
  • Potentiometer
  • Idling control actuator
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts and cross-sections. Many parts have been chromium-plated and galvanised for a longer life.
  • Operated: Static
  • Equipment Layout: On Base
  • Dimensions: 25 x 25 x 25(h) cm
  • Net Weight: 3 kg
  • Gross Weight: 6 kg
Product: Mono-jetronic Throttle Body Cutaway
Product Code: VB 10360S
