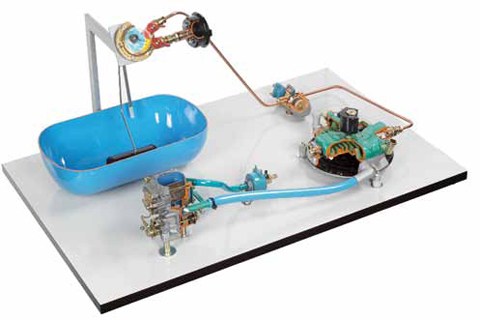

LPG Fuel Circuit Cutaway
Layout of a car LPG fuel system with single-body carburettor for educational purposes.

This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts and cross-sections. Many parts have been chromium-plated and galvanised for a longer life.
Specifications:

Main Technical Specifications:
  • Filler Plug
  • LPG tank
  • Level gauge
  • LPG solenoid valve
  • Petrol solenoid valve
  • Vaporiser reduction gear
  • Carburettor

Other Specifications:
  • Operated: Static
  • Equipment Layout: On Base
  • Dimensions: 80 x 50 x 40(h) cm
  • Net Weight: 12 kg
  • Gross Weight: 20 kg
Product: LPG Fuel Circuit Cutaway
Product Code: VB 10520S
