Electronic Injection Feeding Circuit Cutaway

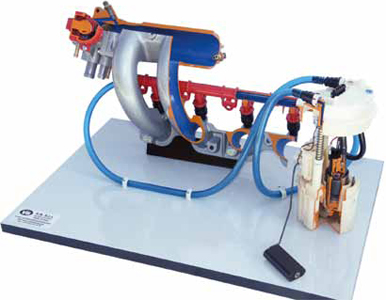

Section of a 4-cylinder multipoint electronic fuel injection feeding circuit.

This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts and cross-sections. Many parts have been chromium-plated and galvanised for a longer life.

Main Technical Specifications:
  • Suction manifold with electro-injector
  • Air capacity meter
  • Fuel manifold to the injectors
  • Butterfly body
  • Accelerator position switch
  • Submersed electric petrol pump
  • Fuel lever meter

Other Specifications:
  • Operated: Static
  • Equipment Layout: On Base
  • Dimensions: 40 x 60 x 40(h) cm
  • Net Weight: 8 kg
  • Gross Weight: 12 kg
Product: Electronic Injection Feeding Circuit Cutaway
Product Code: VB 10355S
