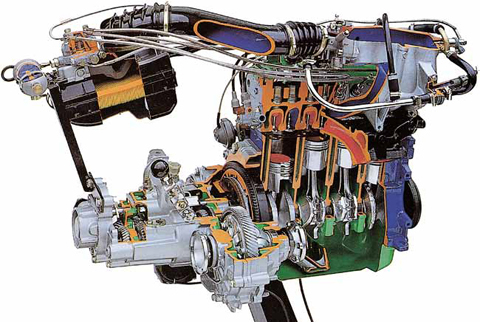

Volkswagen Multipoint Electronic Fuel Injection Petrol Engine with Gearbox Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.
Other Available Cutaway Models:
Main Technical Specifications:
- Displacement: 1600/1800/2000 cc
- Overhead camshaft (OHC)
- Distribution by means of a toothed belt
- 4 in-line cylinders
- Gearbox: 5 speeds and reverse, with integrated differential
Other Specifications:
- Operated: Electrically (Motor 230 V)
- Equipment Layout: On Stand with Wheels
- Dimensions: 60 x 155 x 90(h) cm
- Net Weight: 155 kg
- Gross Weight: 205 kg
Product: Volkswagen Multipoint Electronic Fuel Injection Petrol Engine with Gearbox Cutaway
Product Code: VB 5166E
