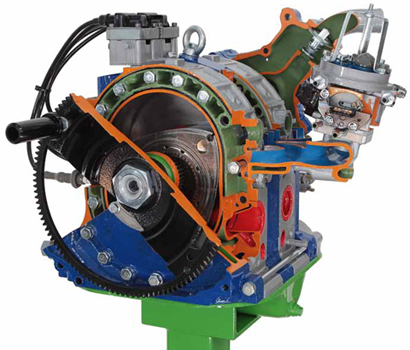

Twin-rotor Wankel Petrol Engine (Mazda) Cutaway
Accurate section of the most common Mazda Wankel Engine.

The following parts are shown:
  • Drive shaft with flywheel
  • Twin-rotor
  • Suction and exhaust channels
  • Chain-driven oil pump
  • Water pump with thermostatic valve
  • Electronic injection
  • Twin-spark ignition
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.
  • Operated: Manually (Through a Crank Handle)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 70 x 70 x 100(h) cm
  • Net Weight: 95 kg
  • Gross Weight: 140 kg
Product: Twin-rotor Wankel Petrol Engine (Mazda) Cutaway
Product Code: VB 4400M
