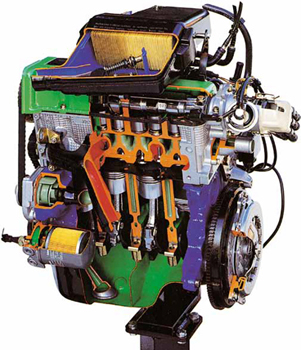

Monojetronic Electronic Fuel Injection Petrol Engine Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.

Other Available Cutaway Models:

  • Monojetronic EFI Petrol Engine (Electrically Operated) Cutaway – (VB 5210IEE)

  • Monojetronic EFI Petrol Engine with Gearbox (Electrically Operated) Cutaway – (VB 5220 IEE)


  • Carburettor Petrol Engine (Electrically Operated) Cutaway – (VB 5210CE)

  • Carburettor Petrol Engine (Manually Operated) Cutaway – (VB 5210CM)

  • Carburettor Petrol Engine with Gearbox (Electrically Operated) Cutaway – (VB 5220CE)


  • Multipoint EFI Petrol Engine (Electrically Operated) Cutaway – (VB 5212IEE)

  • Multipoint EFI Petrol Engine (Manually Operated) Cutaway – (VB 5212IEM)

  • Multipoint EFI Petrol Engine with Gearbox (Electrically Operated) Cutaway – (VB 5222IEE)

Specifications:

Main Technical Specifications (VB 5210C):
  • 4 in-line cylinders
  • Displacement: 1000/1300 cc
  • Overhead camshaft - OHC
  • Carburettor
  • Electronic ignition
  • Alternator
  • Toothed belt
Other Specifications:
  • Operated: Manually or Electrically
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 67 x 87 x 85(h) cm
  • Net Weight: 60 kg
  • Gross Weight: 120 kg

Main Technical Specifications (VB 5210IE):
  • 4 in-line cylinders
  • Displacement 1245 cc
  • Overhead camshaft
  • Electronic injection
  • Electronic ignition
  • Toothed belt
  • Alternator
Other Specifications:
  • Operated: Manually or Electrically
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 67 x 87 x 85(h) cm
  • Net Weight: 60 kg
  • Gross Weight: 120 kg
Product: Monojetronic Electronic Fuel Injection Petrol Engine Cutaway
Product Code: VB 5210IEM
