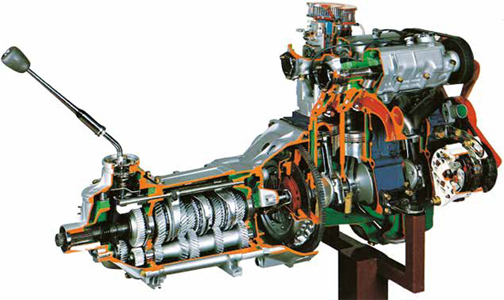

Carburettor Twin-shaft Petrol Engine with Gearbox Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.

Other Available Cutaway Models:

  • Carburettor Twin-shaft Petrol Engine (FIAT) with Simulated Ignition and Gearbox Cutaway (Electrically Operated) – (VB 5110E)

  • Carburettor Turbocharged Twin-shaft Petrol Engine (FIAT) with Gearbox Cutaway (Electrically Operated) – (VB 5120E)

Specifications:

Main Technical Specifications:
  • 4 Cylinders
  • Displacement: 1600/2000 cc
  • 2 overhead camshaft driven by a toothed belt
  • Overhead valves with V-arrangement
  • Coil ignition
  • Alternator
  • Twin-carburettor
  • Gearbox: 5 speeds and reverse
  • Dry single-plate clutch

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 76 x 140 x 100(h) cm
  • Net Weight: 150 kg
  • Gross Weight: 220 kg
Product: Carburettor Twin-shaft Petrol Engine with Gearbox Cutaway
Product Code: VB 5100E
