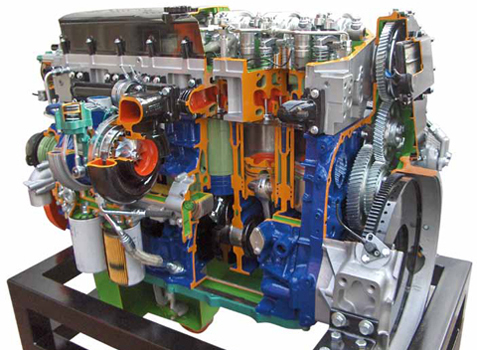

Heavy Vehicle Diesel Engine with Electronically Controlled Pump Injectors Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.
Specifications:

Main Technical Specifications:
  • Displacement: 7790/10380 cc (according to what is available)
  • 4 stroke
  • 6 in-line cylinders
  • 4 valves per cylinder
  • Maximum power 310/450hp (according to what is available)
  • Water cooling
  • Turbo-compressor
  • Pump injectors electronically controlled
  • Pre-heating device

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 200 x 105 x 150(h) cm
  • Net Weight: 950 kg
  • Gross Weight: 1200 kg
Product: Heavy Vehicle Diesel Engine with Electronically Controlled Pump Injectors Cutaway
Product Code: VB 6083E
