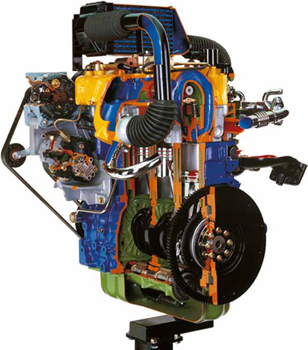

JEEP Common Rail Turbo Diesel Engine Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanized for a longer life.

Other Available Cutaway Models:

Main Technical Specifications:
  • 4 stroke engine
  • 4 in-line cylinders
  • Displacement: 2500/2800 cc
  • Power: 150-170 hp At 4000RPM
  • Twin overhead camshaft (DOHC) with timing belt
  • 4 valves per cylinder
  • Vibration-damping balancing shafts
  • Common rail-type direct injection with electro-injectors.
  • Turbo-supercharger with air-air intercooler
  • Alternator-oil filter-oil pump

Other Specifications:
  • Operated: Manually (Through a Crank Handle)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 120 x 90 x 120(h) cm
  • Net Weight: 200 kg
  • Gross Weight: 270 kg
Product: JEEP Common Rail Turbo Diesel Engine Cutaway
Product Code: VB 6010M
