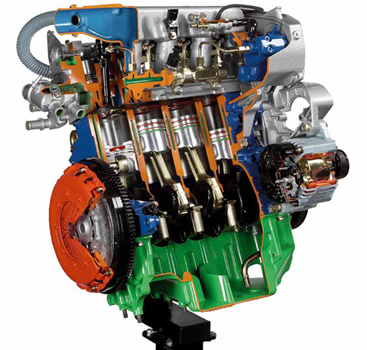

This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.

Other Available Cutaway Models:

• FIAT/Alfa Romeo Common Rail Turbo Diesel Engine Cutaway (Electrically Operated) – (VB 6015E)

• FIAT/Alfa Romeo FWD Common Rail Turbo Diesel Engine with Gearbox and Differential Cutaway (Electrically Operated) – (VB 6017E)

Main Technical Specifications (VB 6015M):

• 4 stroke engine
• 4 in-line cylinders
• Displacement: 1900 cc
• Power: 115 hp. At 4000 RPM
• Overhead camshaft (OHC) with timing belt
• 2 valves per cylinder
• Common rail-type direct injection with electro- injectors;
• Turbo-supercharger
• Alternator-oil filter-oil pump

Other Specifications:

• Operated: Manually (Through a Crank Handle)
• Equipment Layout: On Stand with Wheels
• Dimensions: 90 x 100 x 120(h) cm
• Net Weight: 150 kg
• Gross Weight: 210 kg

Main Technical Specifications (VB 6017E):

• 4 stroke engine; 4 in-line cylinders
• Displacement: 1900 cc
• Power: 115 hp. At 4000 RPM
• Overhead camshaft (OHC) with timing belt
• 2 valves per cylinder
• Common rail-type direct injection with electro-injectors
• Turbo-supercharger
• Alternator-oil filter-oil pump
• Gearbox 5 speeds + reverse
• Differential
• Rear Drive gearbox on request

Other Specifications:

• Operated: Electrically (Motor 230 V)
• Equipment Layout: On Stand with Wheels
• Dimensions: 90 x 100 x 120(h) cm
• Net Weight: 150 kg
• Gross Weight: 210 kg
