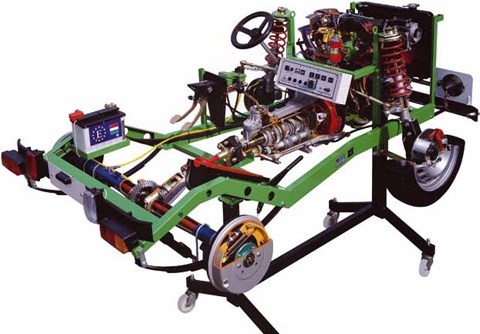

RWD Chassis with DOHC Multipoint EFI Petrol Engine Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.

Other Available Cutaway Models:

  • RWD Chassis with DOHC Multipoint EFI Petrol Engine and Working Lighting System Cutaway (Electrically Operated) – (VB 5340E)

  • RWD Chassis with DOHC Carburettor Petrol Engine Cutaway (Electrically Operated) – (VB 5360E)

  • RWD Chassis with DOHC Carburettor Petrol Engine and Working Lighting System Cutaway (Electrically Operated) – (VB 5370E)

Specifications:

Main Technical Specifications:
  • 4 stroke 4 cylinder petrol engine
  • Displacement: 2000 cc
  • Gearbox: 5 forward speeds + reverse,
  • Differential with hypoid crown wheel and pinion;
  • Twin overhead camshaft driven by a toothed belt;
  • Electronic ignition
  • Dual braking circuit
  • McPherson front suspension
  • Front disc brakes and rear drum brakes
  • Rack steering box
  • Rear leaf spring suspension

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 145 x 220 x 100(h) cm
  • Net Weight: 300 kg
  • Gross Weight: 420 kg
Product: RWD Chassis with DOHC Multipoint EFI Petrol Engine Cutaway
Product Code: VB 5350E
