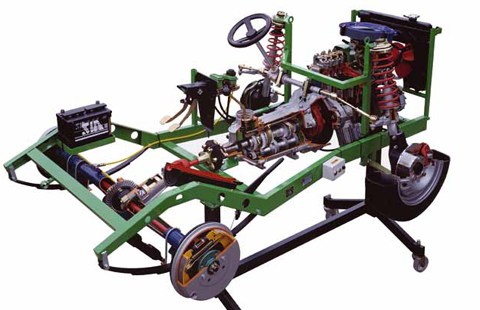

RWD Chassis with Carburettor Petrol Engine Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.


Other Available Models:
  • RWD Chassis with Carburettor Petrol Engine (Manually Operated) – (VB 5320M)

  • RWD Chassis with Carburettor and Simulated Ignition Petrol Engine (Electrically Operated) – (VB 5310E)

  • RWD Chassis with Carburettor Petrol Engine and Working Lighting System (Electrically Operated) – (VB 5330E)
Specifications:

Main Technical Specifications:
  • 4 stroke 4 in-line cylinder engine
  • Displacement: 2000 cc
  • Gearbox: 4/5 forward speeds + reverse,
  • Hypoid differential
  • Camshaft in the crankcase
  • Vertical twin carburettor
  • Water cooling
  • Spring single plate clutch
  • McPherson front suspension
  • Front disc brakes and rear drum brakes
  • Rack steering box
  • Drive shaft with mechanical and flexible joint
  • Rear leaf spring suspension.

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 145 x 220 x 100(h) cm
  • Net Weight: 300 kg
  • Gross Weight: 420 kg
Product: RWD Chassis with Carburettor Petrol Engine Cutaway
Product Code: VB 5300E
