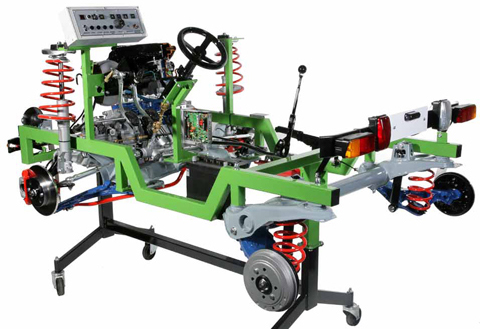

FWD Chassis with Multipoint EFI Petrol Engine Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.

Other Available Cutaway Models:

Main Technical Specifications:
  • Fiat chassis with front drive (transversally mounted engine)
  • Petrol engine, 4 cylinders, displacement: 1200 cc, complete of all accessories
  • Electronic injection MPI (Multi-point) and electronic ignition controlled by a single electronic ECU (engine control unit)
  • Catalytic converter with oxygen (Lambda) sensor
  • Gearbox: 5 forward speeds+reverse+ differential
  • Driving box gauge line with double- jointed steering column
  • Radiator with electric fan
  • Double circuit brake system with servo brake
  • Front-disc brake
  • Rear-drum brake

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 220 x 160 x 115(h) cm
  • Net Weight: 290 kg
  • Gross Weight: 400 kg
Product: FWD Chassis with Multipoint EFI Petrol Engine Cutaway
Product Code: VB 5275E
