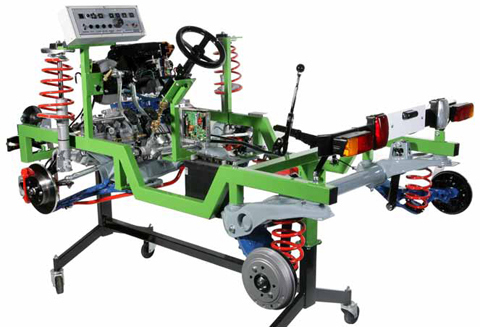

FWD Chassis with Multipoint EFI Petrol Engine, ABS and Hydraulic Power Steering Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.


Other Available Models:
  • FWD Chassis with Multipoint EFI Petrol Engine, ABS, Hydraulic Power Steering and Working Lighting System Cutaway (Electrically Operated) – (VB 5272E)
Specifications:

Main Technical Specifications:
  • Fiat chassis with front drive (transversally mounted engine)
  • Petrol engine, 4 cylinders, displacement: 1200 cc, complete of all accessories
  • Electronic injection MPI (Multipoint) and electronic ignition controlled by a single electronic ECU (engine control unit)
  • Catalytic converter with oxygen (Lambda) sensor
  • Gearbox: 5 forward speeds+reverse+ differential
  • Hydraulic power steering with double-jointed steering column
  • Brake system with 4 sensors ABS
  • Radiator with electric fan
  • Front-disc brake
  • Rear-drum or disc brake
  • Independent wheels McPherson front suspension with oscillating arms
  • Rear independent suspensions with oscillating arms

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 220 x 160 x 115(h) cm
  • Net Weight: 290 kg
  • Gross Weight: 400 kg
Product: FWD Chassis with Multipoint EFI Petrol Engine, ABS and Hydraulic Power Steering Cutaway
Product Code: VB 5273E
