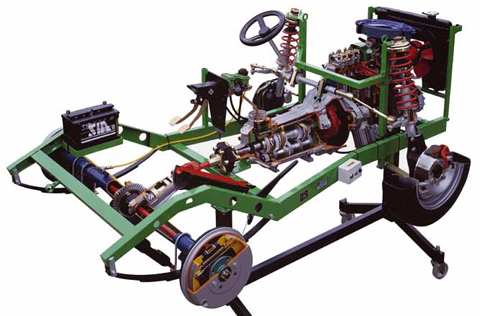

RWD Chassis with Turbo Diesel Engine Cutaway
This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.


Other Available Models:
  • RWD Chassis with Diesel Engine Cutaway (Electrically Operated) – (VB 6150E)

  • RWD Chassis with Turbo Diesel Engine and Working Lighting System Cutaway (Electrically Operated) – (VB 6160E)

  • RWD Chassis with Diesel Engine and Working Lighting System Cutaway (Electrically Operated) – (VB 6170E)
Specifications:

Main Technical Specifications:
  • 4 stroke engine
  • 4 in-line cylinders
  • Displacement: 2000/2500 cc
  • Gearbox: 5 forward speeds+reverse:
  • Single-plate clutch with diaphragm;
  • Propeller shaft with mechanical and flexible joint;
  • Hypoid differential;
  • Front disc brakes; rear drum brakes with double circuit;
  • Rear leaf spring suspension;
  • McPherson suspension front;
  • Rack steering gear.

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 145 x 220 x 100(h) cm
  • Net Weight: 420 kg
  • Gross Weight: 560 kg
Product: RWD Chassis with Turbo Diesel Engine Cutaway
Product Code: VB 6140E
