Double Circuit Brakes Cutaway

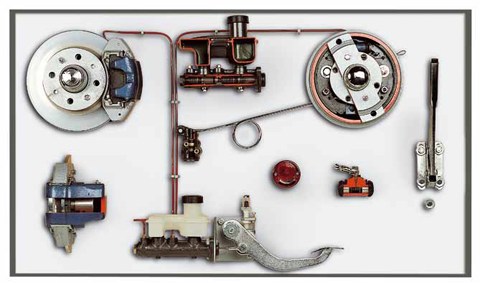

Wall panel representing a double circuit braking system. As in real conditions, it is operated by a hydraulic pump connected to the disc brake and a drum brake. A braking adjuster is placed between the pump and the (rear) drum brake in the circuit in order to avoid the rear wheels locking during the braking phase.

The same devices used in the circuit have been sectioned and added in the panel to clearly show their operation.

This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts. Many parts have been chromium-plated and galvanised for a longer life.
  • Operated: Manually
  • Equipment Layout: On Panel
  • Dimensions: 110 x 60 x 40(h) cm
  • Net Weight: 35 kg
  • Gross Weight: 65 kg
Product: Double Circuit Brakes Cutaway
Product Code: VB 12050M
