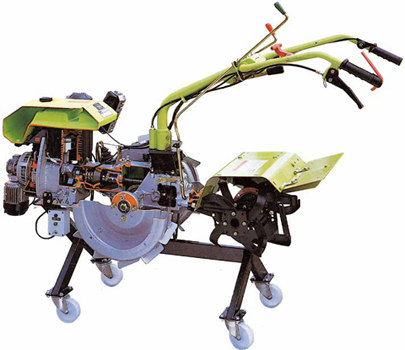

Motor Cultivator Cutaway
Accurate section of a modern petrol motor cultivator with single-cylinder engine, air cooling, 6/10 HP approx.

This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc. Many parts have been chromium-plated and galvanised for a longer life.

Main Technical Specifications:
  • Petrol engine 4 strokes single cylinder
  • Power: 6 Kw
  • Recoil starter
  • Dry clutch with manual control
  • Gearbox MTC 3+2
  • Reverse command by lever
  • PTO
  • Handlebars adjustable both in height and width
  • Motor-stop safety device

Other Specifications:
  • Operated: Electrically (Motor 230 V)
  • Equipment Layout: On Stand with Wheels
  • Dimensions: 70 x 180 x 110(h) cm
  • Net Weight: 100 kg
  • Gross Weight: 160 kg
Product: Motor Cultivator Cutaway
Product Code: VB 8600E
